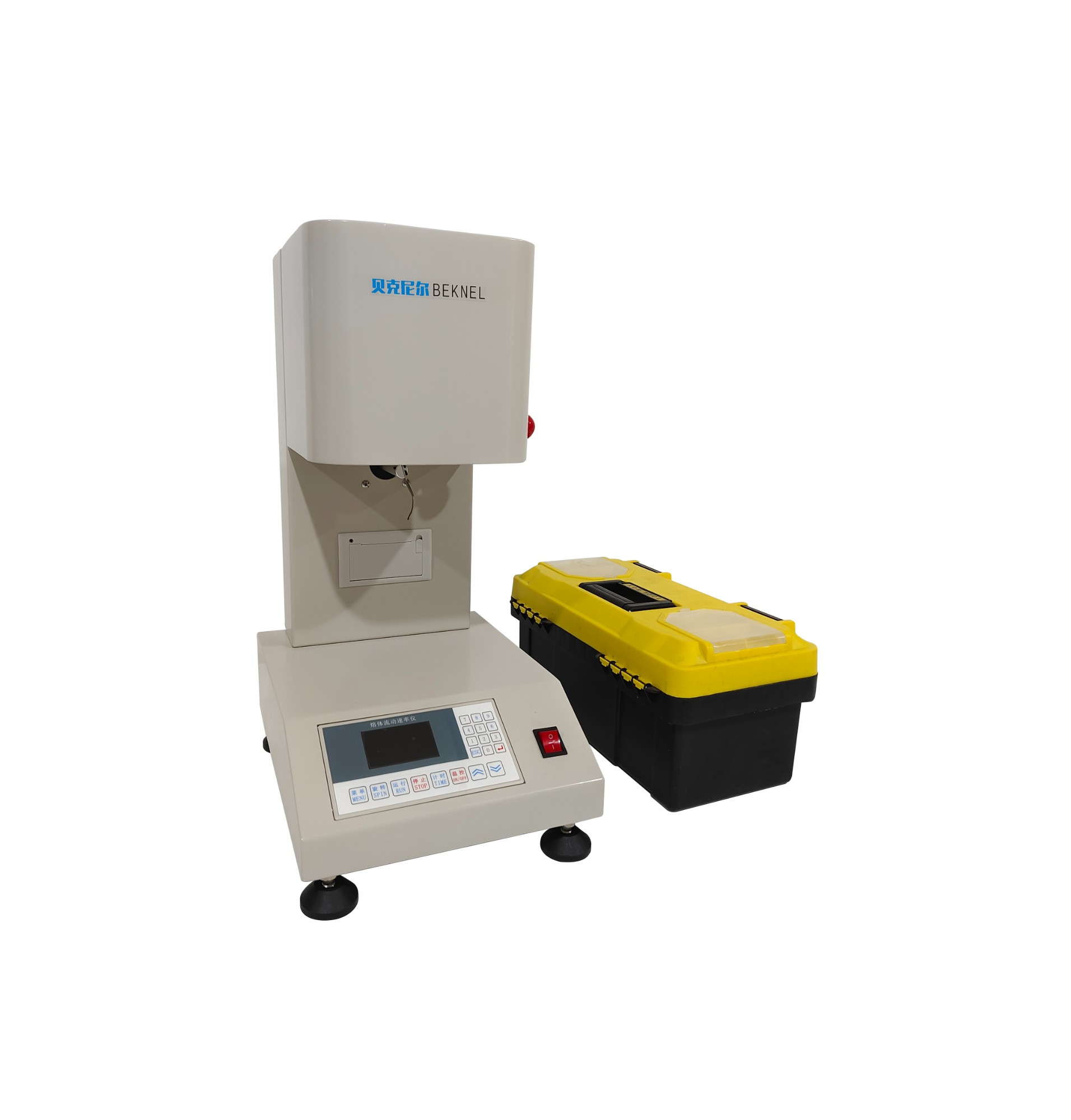

Plastic Melt Flow Indexer Melt Flow Index Tester

Room temperature - 400°c

Product description: Melt Flow Indexers are used to measure the melt mass-flow rate (MFR), melt volume-flow rate (MVR), as well as Melt density of a wide range of thermoplastic raw materials, polycarbonate, fluoroplastics

Product Details

Product Tags

Product Description

Plastic melt flow indexer melt flow index tester is used for measuring a variety of plastics, resins during viscous flow condition under a certain temperature and load, to get MFR value per 10min by standard die melt flow rate. It applies to the higher melting temperature of polycarbonate, aromatic sulfone, fluoro plastic, nylon and other engineering plastics, and also used in the plastic test for polyethylene (PE), polystyrene (PS), polypropylene (PP), ABS resin, polyoxymethylene (POM), polycarbonate (PC) resin and of lower melting temperature, which is widely used in plastics, plastic products, petrochemical industry and related universities, research institutes, and commodity inspection departments.

Technical parameters:

Machine size(WHD)	250510350mm
Power	AC220V±10% 50/60HZ
Barrel parameters	Inner hole 9.55±0.025mm
Pistons parameters	Piston head: 9.475±0.015mm
Piston length	H=6.35±0.1mm
Parameters	Extrusion hole 1=2.095±0.005mm
Temperature parameter	With intelligent temperature control instrument, with four pairs of significant temperature setting control, PID parameters can be automatically set, precision up to ± 0.1 degree centigrade
Temperature range	RT~450ºC
Temperature accuracy blade to jawand dust collector	±0.2 ºC
Display resolution	0.1ºC
Maximum comsuption	< 600W
Temperature recovery time	less than 4 min.
Weight parameters
Weight accuracy	±0.5%
Basic configuration	0.325kg, 1.kg, 2.1kg, 3.kg, 5.kg, 10.0kg, 12.kg, 21.6kg
Position detection
Loop distance from up and down	30mm
Control precision	± 0.1mm
Test flow control
Times of cutting the material	0~10 times
Material cutting interval	0~999s(set reference Table 2)
Control flow reaches the set temperature without volatility
Barrel temperature time	15 min.
Material be installed	1 min
Material sample temperature recovery time	4 min.
When binder set	1min
