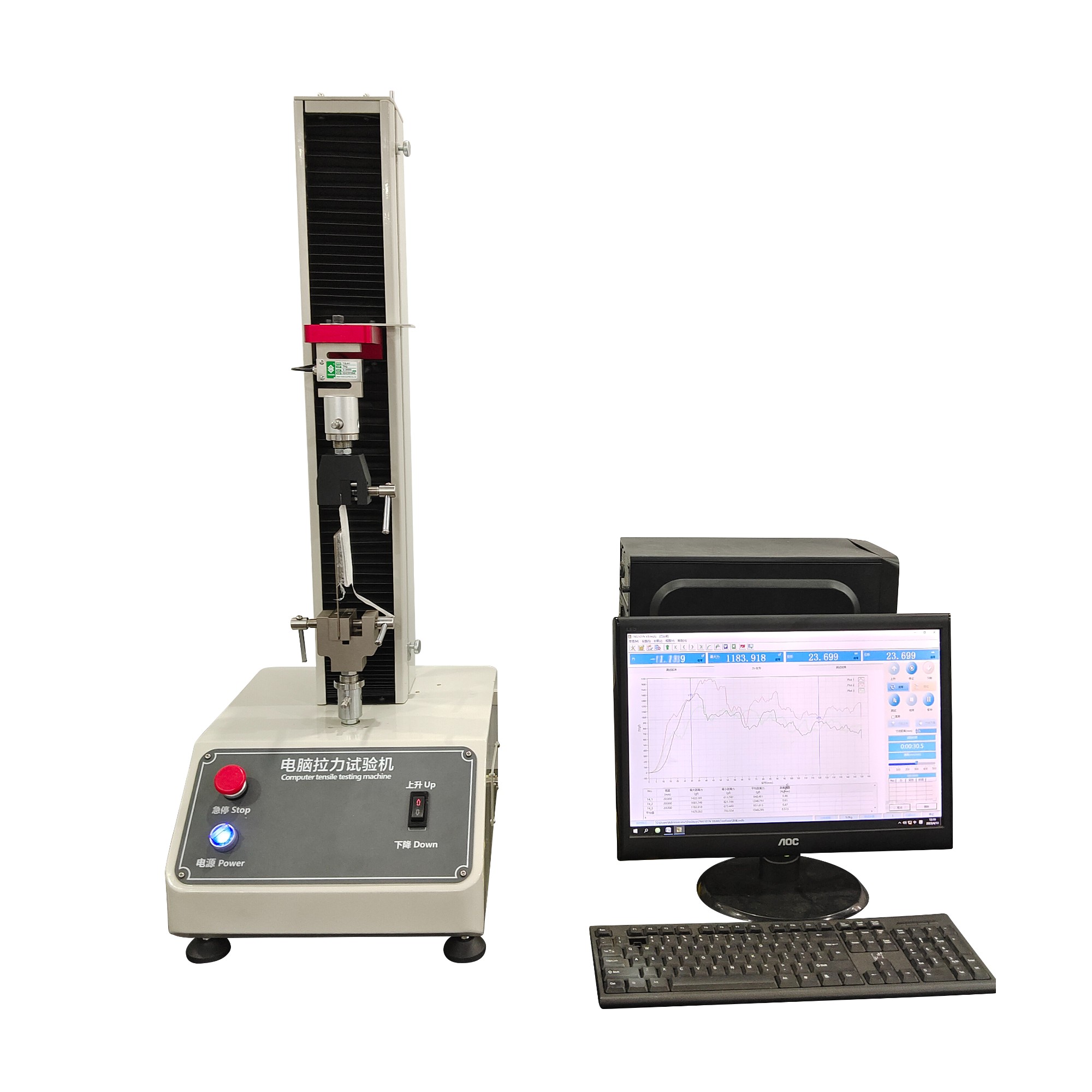

Computer Tape Adhesion Peel Strength Testing Machine is used to test various materials (both finished and semi-finished products ) of tensile strength ,compression and elongation ,stripping force ,tear strength ,bending strength ,compression ,etc.

 Design standard:  ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7

Characteristics:

1.  Computer Tape Adhesion Peel Strength Testing Machine The structure is made of the paint-coated aluminium blanking plate. The interior is used the high-accuracy,low-resistance and zero clearance of two ball screw and oriented pole which improve loading efficience and structure rigidity.

2. Computer Tape Adhesion Peel Strength Testing Machine Use Panasonic servo motor which ensure high efficiency,steady transmission and low noise. The accuracy of speed can be controled in 2%.

3. Computer Tape Adhesion Peel Strength Testing Machine That Using the business computer as the main control mathine plus the special testing software of our campany can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.

Specification of main engine:

A, Motor system;Panasonic servo motor +Panasonic servo driver +ball screw

B, Control system;a, computer servo system, b, Back to origin automatically after the test, c, store data  automatically or by manual operation

C, Data transmission;USB

D,Computer servo system ;Desktop computer servo control tensile tester dedicated system

E, Display modes: Windows Interface display

F, Convenient full gear and precise full six gears calibration of the system of linear double strength

G, Using windows interface to test software it can achieve to set speed, load, power time, Breakpoint proportion ,much order control mode and meet different test requirement.

H, Whole displacement; encoder (2500P/R), ascending 4 times precision

I, Displacement resolution; 0.001mm

J, Safety device;overload emergency stop device, fluctuation travel limit device, leakage automatic broken electricity system, automatic breakpoint stop function

 Function of software:

1.Use windows working platform, set all parameter with dialog forms and operate easy;
2.Using a single screen operation, do not need to change the screen;
3.Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;
4.Plan test sheet mode freely;
5.Test data can be directly appeared in the screen;
6.Compare multiple curve data through translation or contrast ways;
7.With many units of measurement, the metric system and british system can switch;
8.Have automatic calibration function;
9.Have user-defined test method function
10.Have test data arithmetic analysis function
11. Have the function of automatic magnification, to achieve the most appropriate size of graphics;
12. Can test tensile, compression, peel, fatigue and so on.
