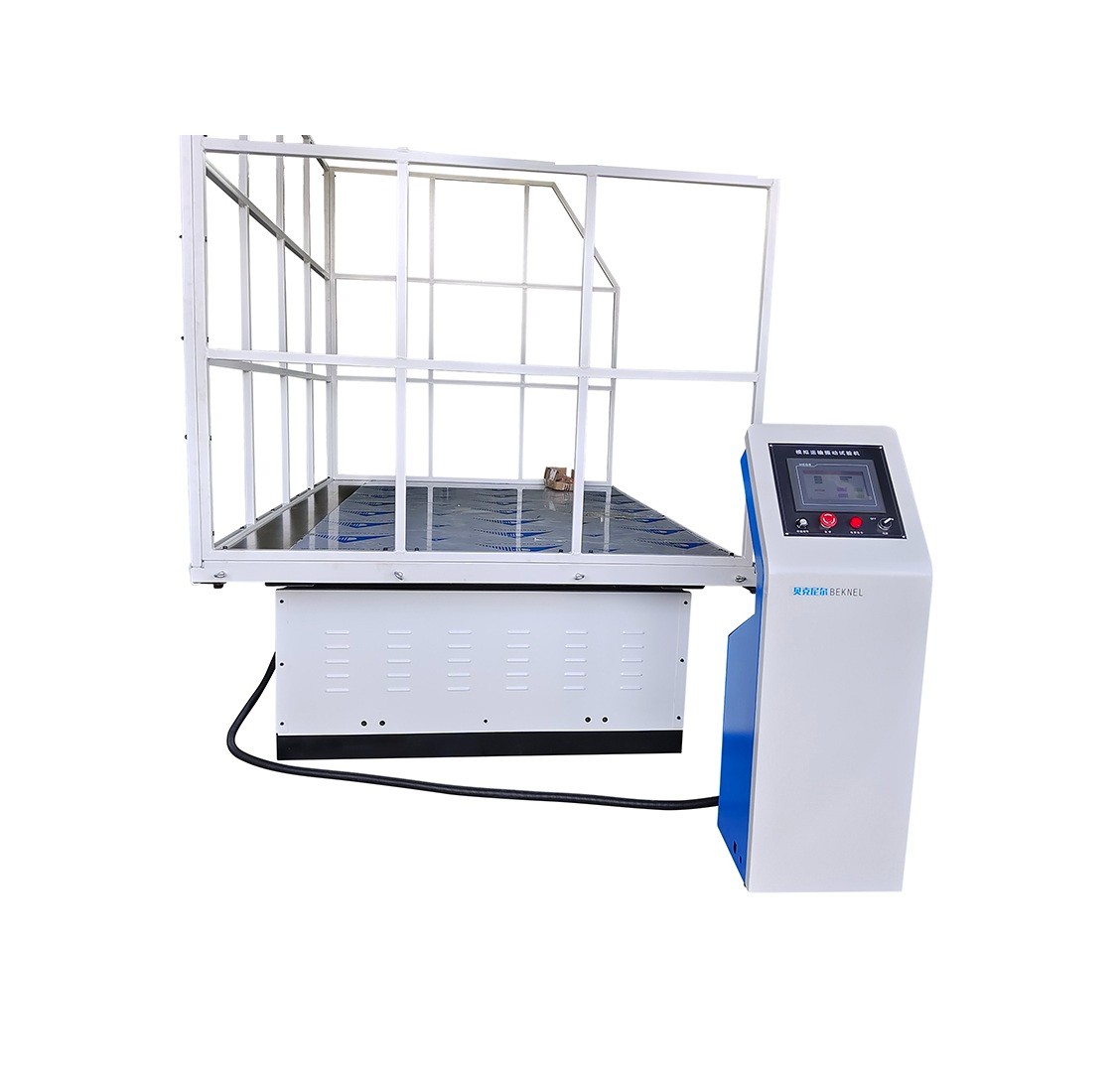

Package large scale simulation transportation vibration tester

This machine is used to simulation testing damage between transport for various package stuff, PC panal, electrical products ect.
  • Product description: Package large scale simulation transportation vibration tester
  • Product Details

    Product Tags

    Product introduction:
     This machine is used to simulation testing damage between transport for various package stuff, PC panal, electrical products ect.

    Features:

    1.Digital meter displays vibration frequency
    2.Synchronous noise suppression belt drive, extremely low noise
    3.The sample clamping adopts the guide rail type, which is convenient and safe to operate
    4.The base of the machine is made of stainless steel with aluminium alloy rail track, which is easy to install and run smoothly
    without installing anchor screws.
    5. Unique design, easy to use.
    6.Rotary vibration (commonly known as horse racing type), in line with European and American transportation standards.



    Vibration Testing Machine Technical Parameters:
     ModeBK-ZD-100BK-ZD-200BK-ZD-300BK-ZD-600    BK-ZD-1000
     Load (Kg)1002003006001000
    Effective Area WxD (mm)1200×10001200×10001200×13001300×14001500×1500
     Weight (Kg)200250350450600
    External Dimension
    WxHxD (mm)
    1300×650×13001300×650×13001300×650×14001400×750×
    1500
    1600×850×
    1600
     Rotating Speed (RPM) 150~300
     Amplitude 25.4mm(1inch), (Accord ASTM.IEC transport standard)
     Time Setting (Approx.) 0~999hours
     Mode of Vibration Reciprocating type
     Power AC220V or according to the equipment specification
