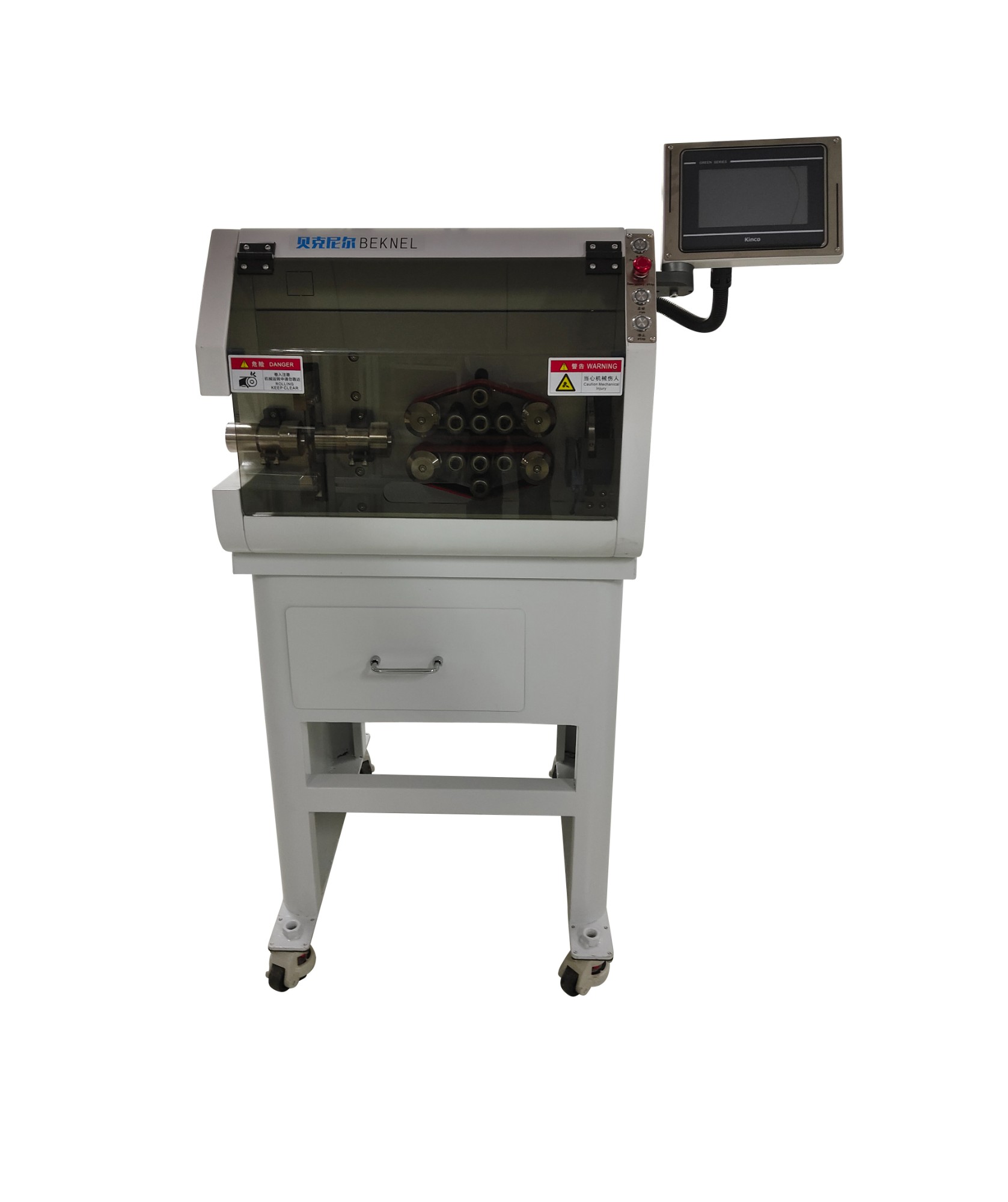

Automatic wire and cable cutting machine

Applicable wire sizes: 6-30 square mm

Product description: Automatic wire and cable cutting machine is able to process of multi-core jacket cables. It can strip outer skin and inner core skin simultaneously.

Product Details

Product Tags

Product Description:

This wire cutting stripping and twisting machine is able to process of multi-core jacket cables. It can strip outer skin and inner core skin simultaneously. The applicable wire sizes range from 6-30 sq mm.

Function: cutting
Applicable wire sizes: 6-30 square mm
Strip outer skin and inner core skin of multi-conductor cables simultaneously
Drive mode: 16-wheel drive (silent hybrid stepper motor, servo tool holder)
Belt feeding wires, no embossing and scratches
Head stripping: the sheathed wire completely falls off 10-120mm, the core wire completely falls off 1-120mm
Tail stripping: the sheathed wire completely falls off 10-240mm, the core wire completely falls off 1-240mm

Specification:

Model	BK-30HN
Display	7 inch true color touch screen
Function	Cutting
Head peeling	MAX 120mm
Tail peeling	MAX 240mm
Wire type	Sheathed cables, PVC cables, etc.
Stripping range	6-30mm2
Cutting length	1mm-99999.9mm
Cutting tolerance	within 0.002*L (L=cutting length)
Max catheter diameter	Φ16
Tool material	High quality imported high speed steel
Capacity	2300pcs/h
Remarks	The machine can be customized for processing special cables, and the sample cable should be sent to us for test.
