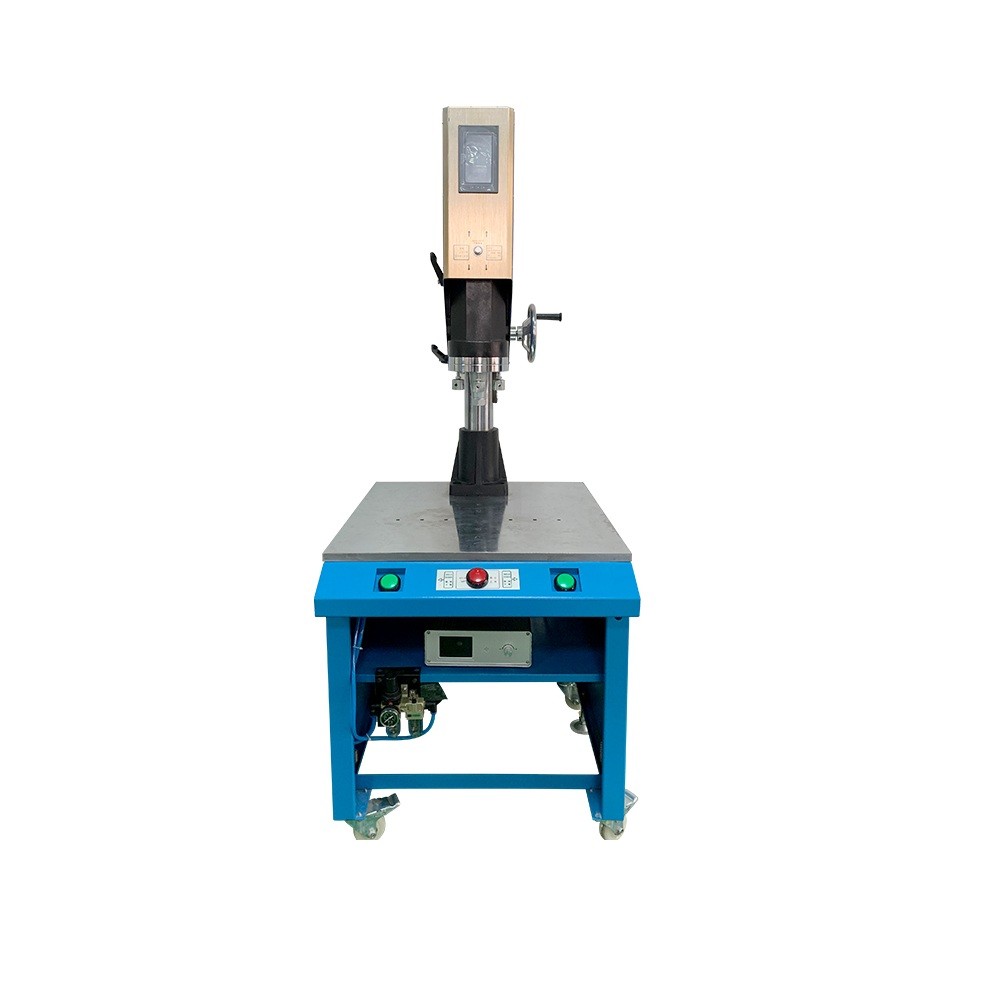

Automatic frequency tracking ultrasonic welding machine

Application:Garden Supplies, Decoration, Commodity, Auto Part, Electronic, Stationery

Product description: Intelligent automatic frequency tracking ultrasonic welding machine with Stepless amplitude control for perfect welding

Product Details

Product Tags

Product Description

Intelligent automatic frequency tracking ultrasonic welding machine with Stepless amplitude control for perfect welding
Features of Automatic frequency tracking ultrasonic welding machine:
1. Automatic frequency tracking: intelligent frequency control system, eliminating the inconvenience of manual frequency modulation, automatic detection of sonic overload, automatic adjustment to the best frequency band, real-time tracking of the best resonance point, machine operation is more stable, the vibration group temperature is kept at the lowest point The temperature of the ultrasonic welding head increases with the frequency change, and the machine automatically adjusts.
2. Stepless amplitude: stepless amplitude control, with 5% increments, all sizes of plastic parts can be welded perfectly, effectively reducing puncture, scald and other bad products.
3. Touch screen display: The digital input is simpler and more accurate than the old dialing operation. The counter can input the initial value, which is convenient for counting and memory.
4. Support the query of product welding records. The welding records detail the parameters of each ultrasonic welding.
5. The upper and lower energy alarm settings help to identify bad products.
6. Dual start mode, safer: both hands must press the start button at the same time, otherwise it will not start.

Electrical parts of Automatic frequency tracking ultrasonic welding machine:
1. Transducer: Imported ultrasonic transducer, with strong power and long-lasting durability.
2. Amplifier: Imported steel alloy amplitude transformer (horn), high strength and wear resistance
3. Transistor: Imported high-power tube.
4. Relay: Imported relays.
5. Switch: Use Fuji switch.
6. Solenoid valve: using "SMC" has higher sensitivity.

Technical parameters of Automatic frequency tracking ultrasonic welding machine:

Model	BK-UA-1542
Output power	4200W
Fuselage appearance size	L955mm x W750mm x H1980mm
Net weight of fuselage	110Kg
Clamping height	50mm-350mm
Welding stroke	Φ350mm
Horizontal adjustment board	L300mm W380mm
Welding stroke	100mm
Operating air pressure	0.7MPa
z axis accuracy control	±0.01mm
Energy transducer	MS 15kHz
Transducer cooling system	Vortex cooler
Input voltage	220VAC
Interface manipulation	Color touch screen
Weight	340 kg
