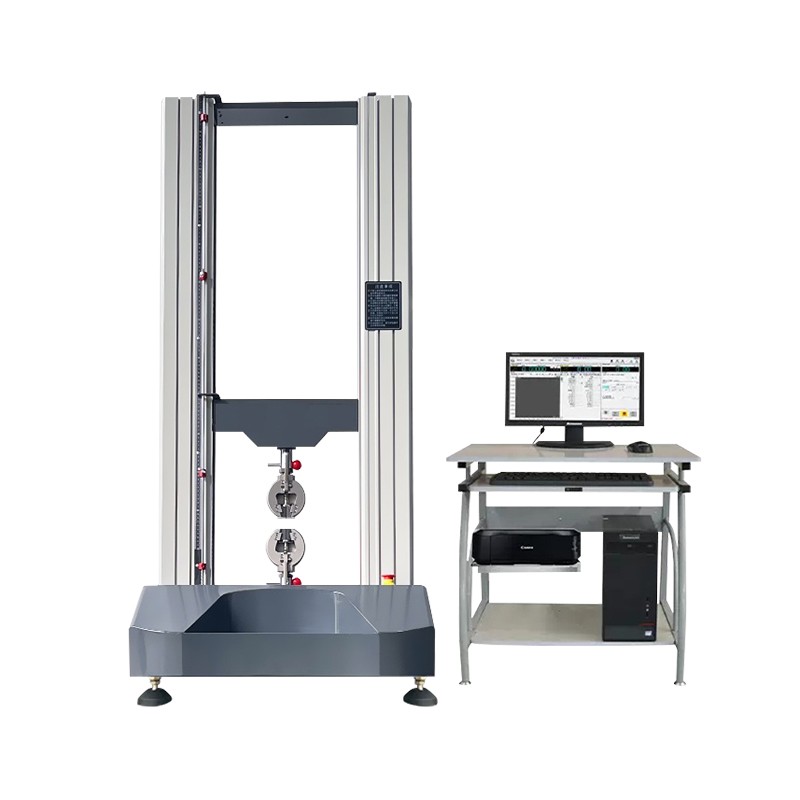

5KN 10KN 20KN Universal Material Tensile Compression TestTesting Machine

5KN 10KN 20KN optional
  • Product description: Tensile Compression Testing Machine,Universal Testing Equipment is widely used in all kinds of hardware, metal, rubber and plastics, footwear, leather, clothing, textiles, insulators, wires, cables, t
  • Product Details

    Product Tags

    Applicable Industries

         Fast Delivery Parts Of Universal Testing Machine,Tensile Compression Testing Machine,Universal Testing Equipment can test various materials (both finished and semi-finished products ) of tensile strength ,compressive strength and elongation ,can do stripping ,tear strength ,flexural ,compression test and etc. It can connect up to the computer and display or printout the test times , test value , max. value , etc . Also it can make various report forms according to the requirements .

        Fast Delivery Parts Of Universal Testing Machine,Tensile Compression Testing Machine,Universal Testing Equipment is widely used in all kinds of hardware, metal, rubber and plastics, footwear, leather, clothing, textiles, insulators, wires, cables, terminals and other types of materials, testing, tensile, tear, peel,compression, bending, shear, three-point bending ... and other physical test performance.

    Technical parameters


    ModelBK-WL-20S
    Max capacity5KN 10KN  20KN
    Induction method :Precision load cell (sensor)
    Max. Load Capacity  :20KN
    Force Resolution/Accuracy:± 0.5%
    Accuracy class :0.5
    Resolution:1/1,000,000
    Test width400mm(Standard specifications
     special specifications can be customized)
    Stroke Resolution:0.001mm
    Machine Dimension  (W*D*H)800×530×1600mm (L*W*H) or Customized
    Weight:About 165kg
    Power :1 phase 220V 50Hz
    PackingStandard Export wood case
    Displacement Control:Displacement encoder count with four frequency technology
    So that the displacement of four times
     the resolution can up to 0.0005mm
