HDT/VICAT Systems offer Heat Distortion Temperature (HDT) and Vicat Softening Point of plastic materials. Qualitest offers a single station economical Heat Deflection tester, while the BK - 3000 Systems and HDT Series Heat Deflection Tester offer sophisticated control using Windows-based software.

Applications：

Lightweight and compact HDT/VICAT tester. It is designed to measure heat deflection temperature and VICAT softening temperature for evaluation of thermal property of plastic materials.

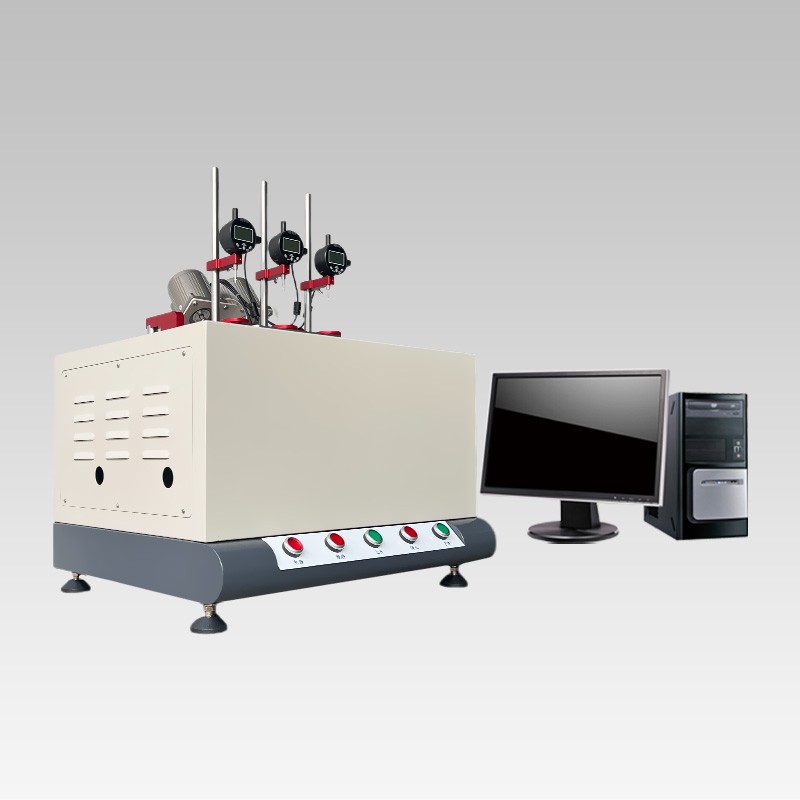

Bench type HDT/VICAT tester. It is designed to measure heat deflection temperature and VICAT softening temperature for evaluation of thermal property of plastic materials. This tester features high precision temperature ramp rate control. LVDT sensor is used on each station to ensure high accuracy of deflection measurement.

Technical Parameters：

Temperature control range:  Oil temperature～300℃

Temperature Resolution:  0.1℃

Maximum temperature control error:  ±1°C/6 minutes (120°C/h) ±0.5°C/6 minutes (50°C/h)

Heating rate: 120°C/h, 50°C/h, arbitrarily set between 50°C/h～120°C/h

Maximum deformation measurement range: 1mm

Maximum deformation measurement error: ±0.005mm

Thermal deformation test span: 64mm, 100mm

Heat deformation indenter and support radius: R3±0.02mm

Vicat needle area: 1mm²， Vicat needle length: 4mm，Number of sample holders: 3

Heating medium: methyl silicone oil (below 200 centistokes, flash point above 300°C)

Maximum heating power: 3.4KW，Control power supply (main power supply): 220V±10%, 15A, 50Hz

Heating power supply (auxiliary power supply) 220V±10%, 5A, 50Hz

Mass of load bar and tray: 76±2g
