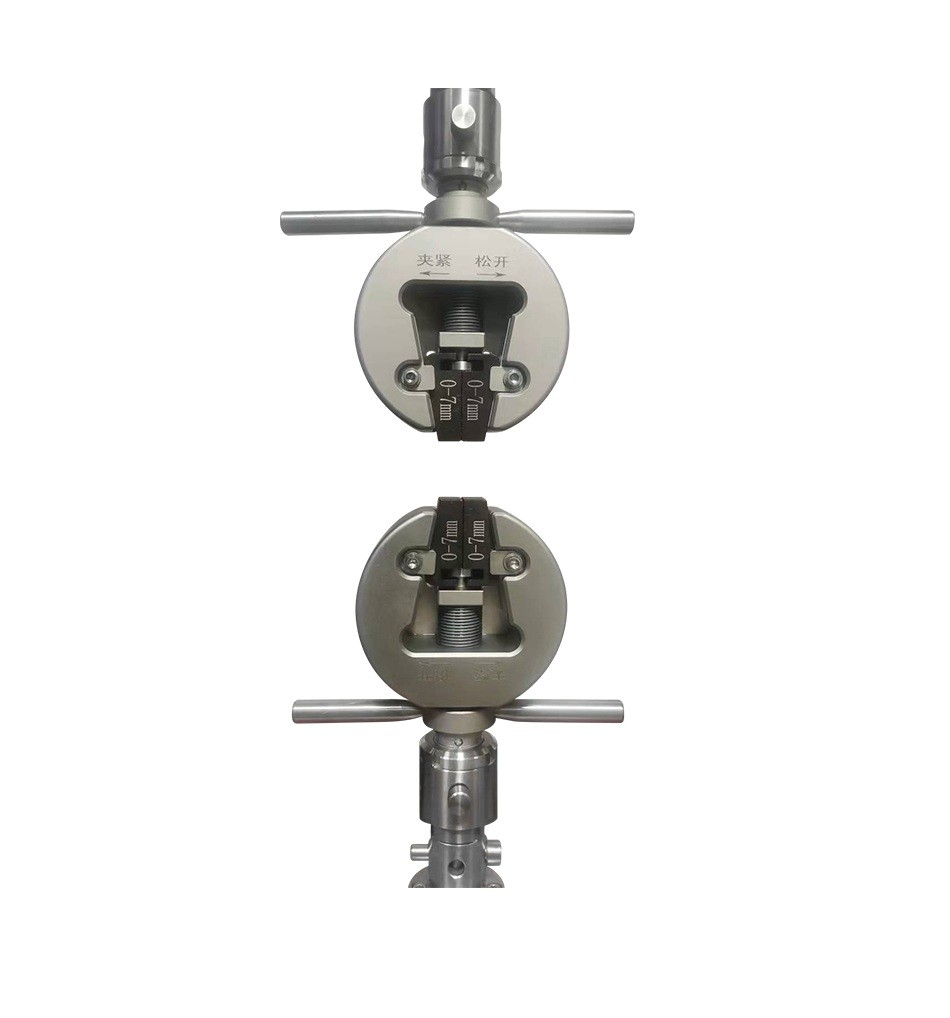

100KN universal material testing machine grips

100KN universal material testing machine grips

Product description: 100KN universal material testing machine grips

Product Details

Single choice shaft joint:

outer diameter 50MM length

54MM, latch hole diameter 18MM; latch hole center

The distance to the joint end face is 24MM;

The locking method is double handle rotation locking.

Optional jaws:

Flat jaw: 0-7MM, 7-14MM,

14-21MM 21-26MM

V-shaped jaws: V4-V9MM, V9-V14MM,

V14-V21MM V21-V26MM

Clampable sample width = 40MM
