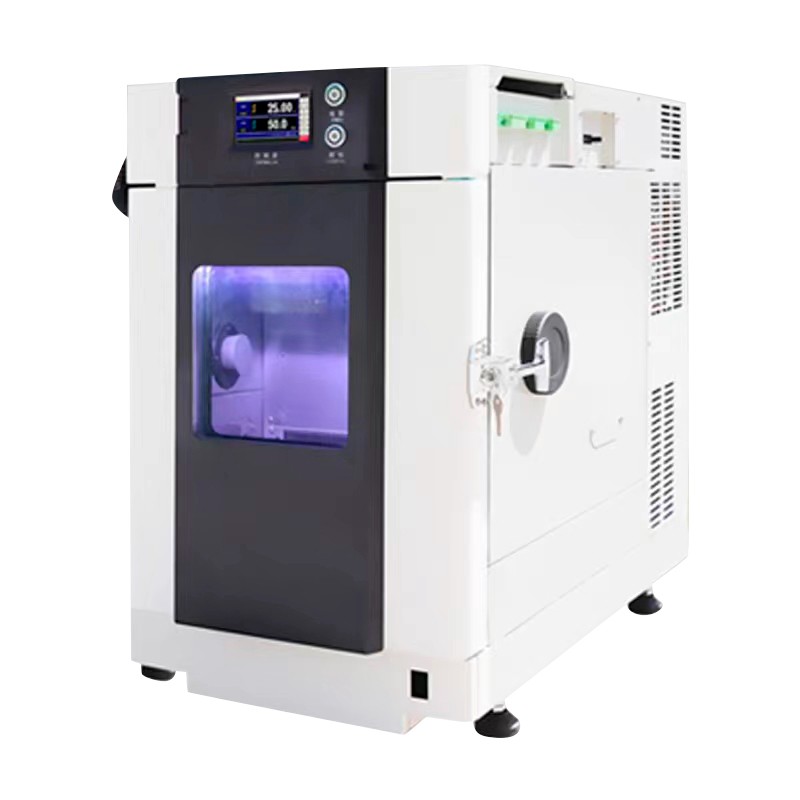

Table top high and low temperature humidity and heat test chamber

IEC 60068-2-1,IEC 60068-2-2

Product description: Desktop constant temperature and humidity storage cabinet simulate the effects that a range of temperature and humidity conditions have on a product or material, for example telecommunications equipme

Product Details

Product Tags

Product Description:

Temperature humidity test chamber, also called climatic test chamber.It can accurately simulate a wide range of complicated natural environmental conditions such as heat damp, low temperature,high temperature, constant heat ,etc. and is suitable for reliability test in industrial products.
It is applicable for electronics, electrical appliance, mobile phones, communication,meters,vehicles, plastic products, metals, food, chemicals, building materials, medical, aerospace and other products quality inspection.

Standard Compliance:

IEC 60068-2-1	Test A: Low Temperature Test
IEC 60068-2-2	Test B: High Temperature Test
MIL-STD.202F	High Temperature Life Test
MIL-STD-810D	High Temperature Test
MIL-STD-810D	Low Temperature Test
IEC 60068-2-3	Test Ca: Constant Heat Test
IEC 60068-2-30	Test Db: Damp Heat Alternative Test
MIL-STD-810D	Damp Heat Test

Model	BK-TH-36S
Capacity(Litres)	36L
Internal dimensions(mm)	300mm400mm300mm(WH*D)
External dimensions(mm)	510mm830mm1020mm(WHD)
Temperature Range	-70ºC ~ + 150ºC
Temperature fluctuation	±0.5ºC
Temperature uniformity	±2.0ºC
Heating rate	from -70ºC to +100ºC 3ºC/min(average)(no load)
Cooling rate	from+20ºC to -70ºC 1ºC/min(average)(no load)
Humidity Range	30~98%R.H
Humidity fluctuation	± 2.0%R.H
Humidity uniformity	±3%R.H(no load)
Interior material	Stainless Steel Plate(SUS 304)
Exterior material	Baked Painting Steel Or Stainless steel(SUS304)
Insulation material	Rigid polyurethane Foam and Glass Fiber Wool
Standard accessories	Sight window1, cable port(portΦ50mm)1, shelves2, chamber lamp1, power cable *2m
Ambient Temp.	+5ºC~+35ºC
Wiring method	AC 220±10% Single phase wire +Ground Wires
