IEC60884-1 Low Temperature Impact Test Device

Meet IEC60884-1 figure 27 and figure 42, VDE0620 and etc

Product description: The equipment is applied to do low temperature impact test for plug, socket, switch, wire and cable and etc. by equip with difference accessories.

Product Details

Product Tags

Product Description

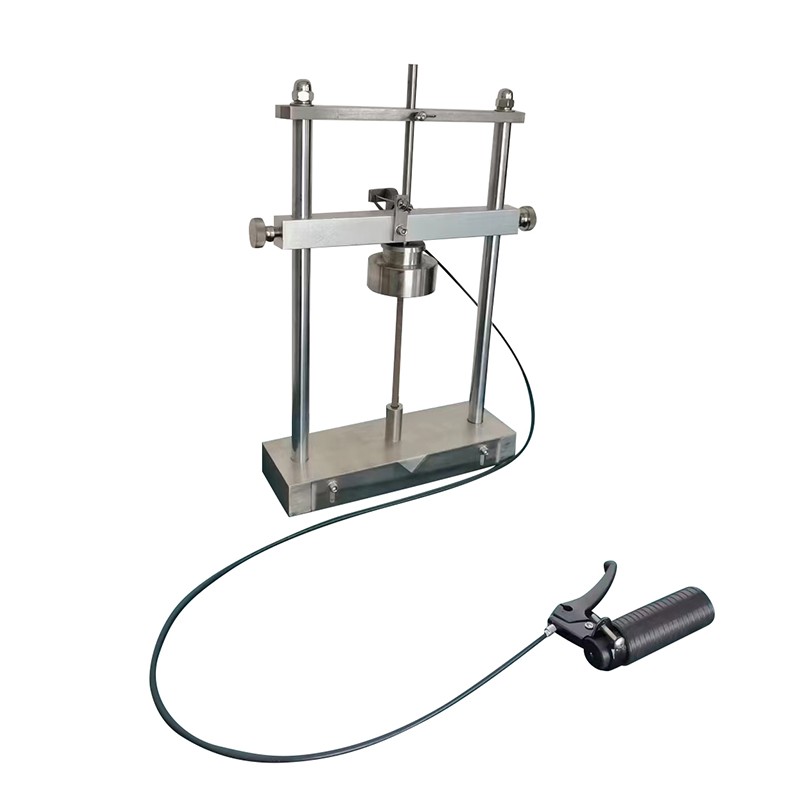

Low Temperature Impact Test Device
1. Introduction
Low temperature impact test device can meet the requirements of GB2099.1-2008 clause 24.4 and 30.4 (figure 27 and figure 42), and GB2951.4, IEC60884-1 figure 27 and figure 42, VDE0620 and etc. The equipment is applied to do low temperature impact test for plug, socket, switch, wire and cable and etc. by equip with difference accessories.

2. Parameter:
1) This equipment should work with low temperature chamber, t should be put in the sponge-rubber pad of 40mm-thickness.
2. The height of falling: 10~250mm is adjustable.

3.Weight of hammer VS falling height

sample	Standard	Weight of hammer (g)	Falling height (mm)	Remark
The socket box and the similar electrical enclosure	GB2099.1-2008 clause 24.4, figure 27	1000±2	100	Standard
Plug with insulation sleeve	GB2099.1-2008 clause 30.4, figure 42	100±1	100	Standard
The electric cable with PVC sleeve	BG2951.4 clause 8.5, figure 2	100,200,300,400, 500,600,750,1000,1250,1500g	100	Optional
