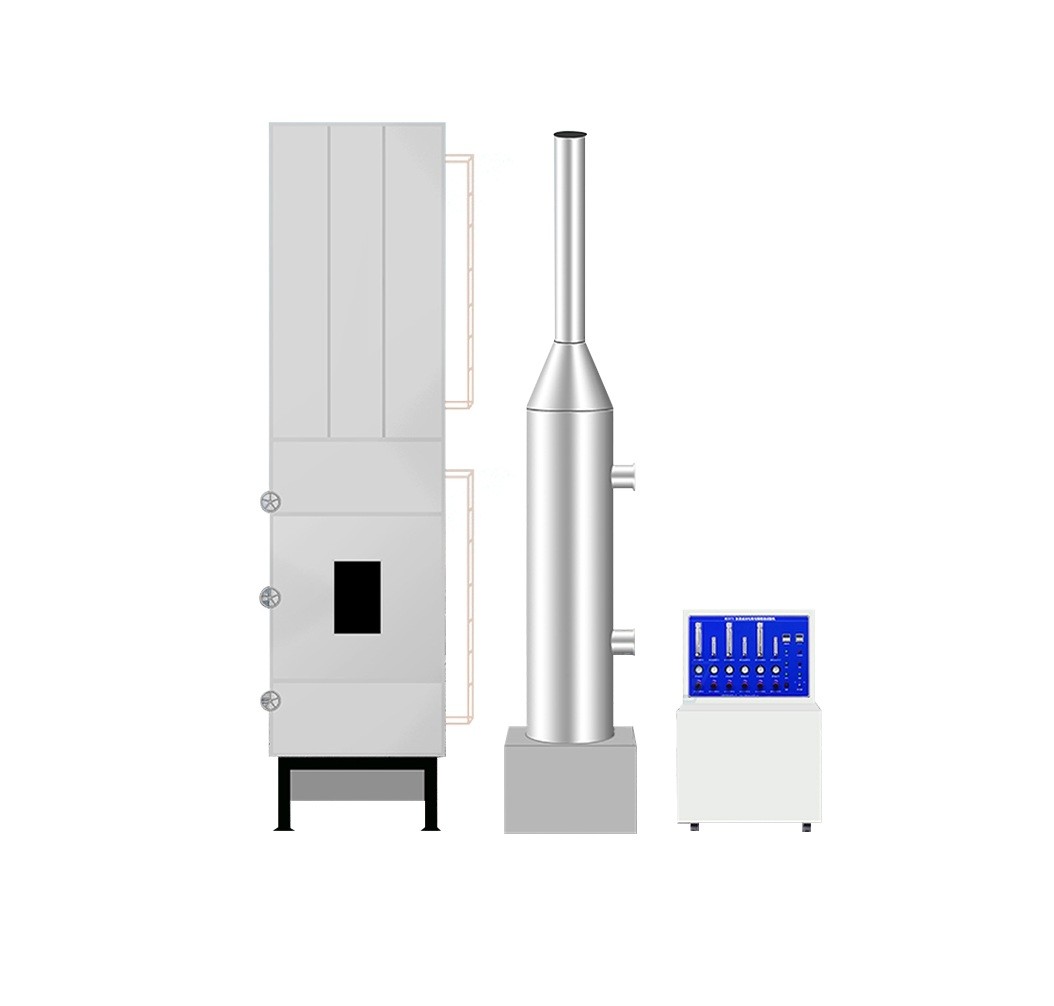

Bundled wire and cable vertical combustion testing machine

1、 Applicable scope:

Suitable for fire hazard assessment of bundled wires, cables, and optical cables.

2、 Compliant with standards:

Compliant with GA/T716-2007 standard

Complies with IEC60332-3/EN50399 experimental standards

3、 Product features:

Made of high-quality (t=1.2mm) 304 stainless steel plate, processed and formed by CNC machine tool, with beautiful and elegant arc shape. Double layered partition design, with a wall thickness of 65mm, and the middle of the partition layer filled with high-temperature cotton. Effectively control the temperature of the outer wall.

4、 Product parameters

This instrument mainly consists of combustion chamber, air supply system, standard ladder, ignition source, probe and sensor pipeline section, smoke density optical testing system, gas analyzer, data acquisition and software processing system, computer control system, combustion gas control system, and exhaust system.

1. Weighing equipment: imported high-precision pressure sensors

2. Oxygen measurement:

Measurement range 0-25%

Signal output: 4-20MA

3. Carbon dioxide measurement:

Measurement range: 0-10%

Pure deviation:<± 1%

1. The data collection system can collect and record experiments such as oxygen concentration, carbon monoxide concentration, temperature, heat release rate, mass loss rate, etc

Data can be saved and printed

2. Equipped with embedded computer, PLC, and expansion module control,

3. Gas sampling system: composed of sampling tube, smoke and dust filter, dehumidification cold trap, moisture filter, carbon dioxide filter
