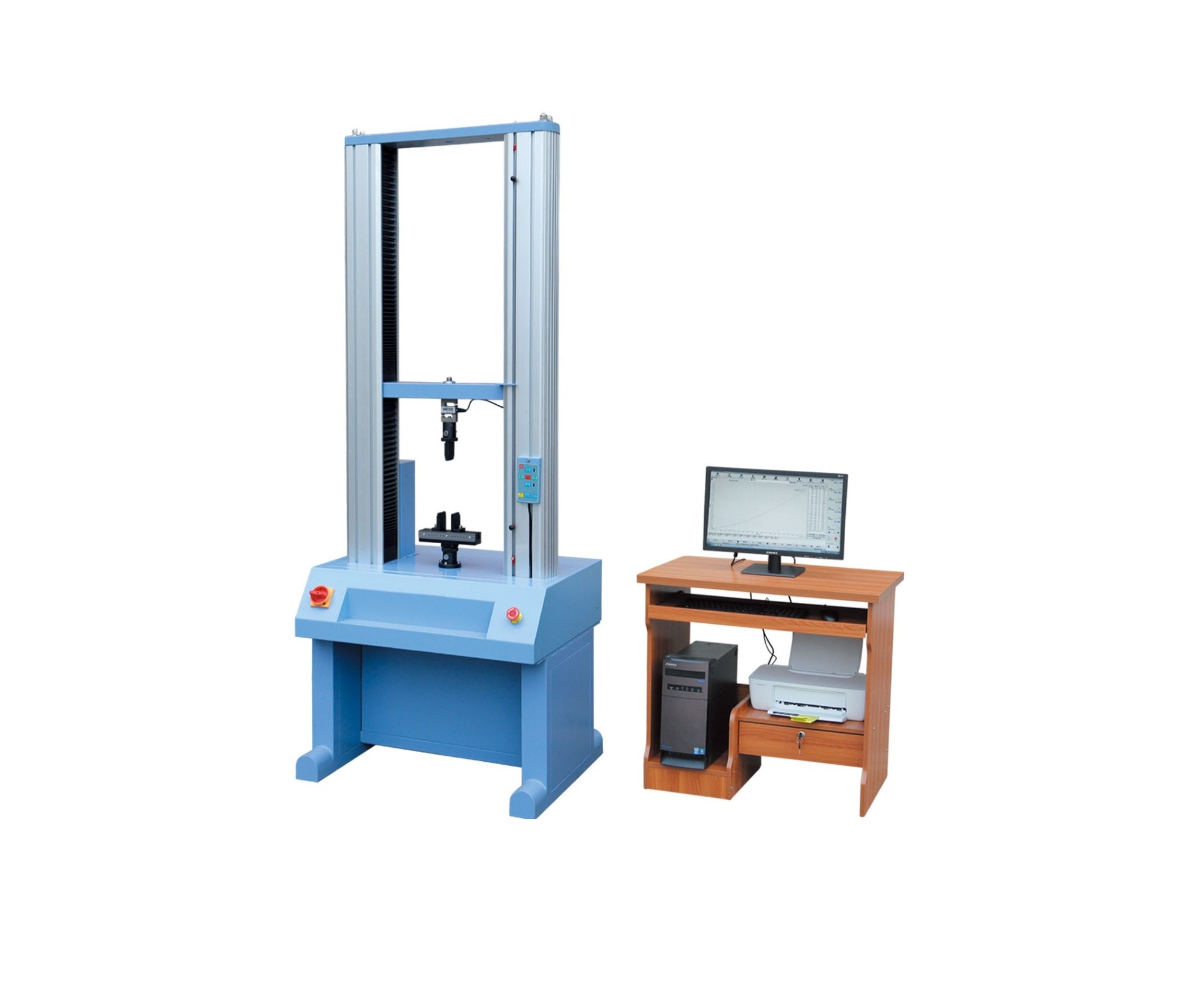

BK-CP-20S Universal Material Compression Bending Testing Machine

BK-CP-20S Universal Material Compression Bending Testing Machine

Product description: BK-CP-20S Electronic Servo Computer Control Universal Tensile Compression Bending Strength Test Testing Machine for Plastic Metal Material

Product Details

Product Tags

1. Powerful test function, with different fixtures, it can carry out a variety of test requirements to meet the needs of users.

2. The software has more powerful functions. Various test results and test curves can be displayed and automatically marked in the interval. It can be upgraded at any time to realize positioning shift, fixed force, fixed time, repeated fatigue testing, etc.

3. The design of the machine is beautiful, generous, easy to operate, and the software has strong scalability and high accuracy.

4. Servo motor drive, high precision ball screw drive, low failure rate and simple maintenance.

Item	BK-CP-20S	BK-CP-10S
Capacity (MAX)	20KN (optional 10N~50KN range force sensor)
Control mode	full computer control mode, powerful software function
Power unit	N, kN, gf, kgf, lbf, kP, tf (SI), tf (long), etc.
Length unit	mm, cm, Inch, m, km, um, etc.
Power resolution	1/500,000;
Accuracy	±0.1%
Travel resolution	1/500,000mm
Accuracy	±0.1%
Effective stroke	700mm; (customizable)	1200mm; (customizable)
Speed range	0.01~500mm/min; (customizable)
Test space	420mm left and right (customizable)
Shutdown mode	overload shutdown, emergency stop button, automatic shutdown of specimen damage, automatic shutdown of upper and lower limit settings
Machine power	Servo motor drive
Machine size (W×D×H)	88×66×208cm	108×66×208cm
Net weight of machine	420KG	480KG
Power	400W
Power supply	220V 50~60HZ
Machine equipment	1 USB communication line, 1 software
Optional accessories	tensile fixture, compression fixture, etc.; (purchase different fixtures according to different test standards)
