Environmental Fast Temperature Humidity Change Rate Test Chamber

Low temperature testing: IEC68-2-2,High temperature testing: IEC68-2-3

Product description: Environmental Fast Temperature Humidity Change Rate Test Chamber is widely applied for quality inspection for all types of electric products, electric appliance, and products from communication, instr

Product Details

Product Tags

Product Description

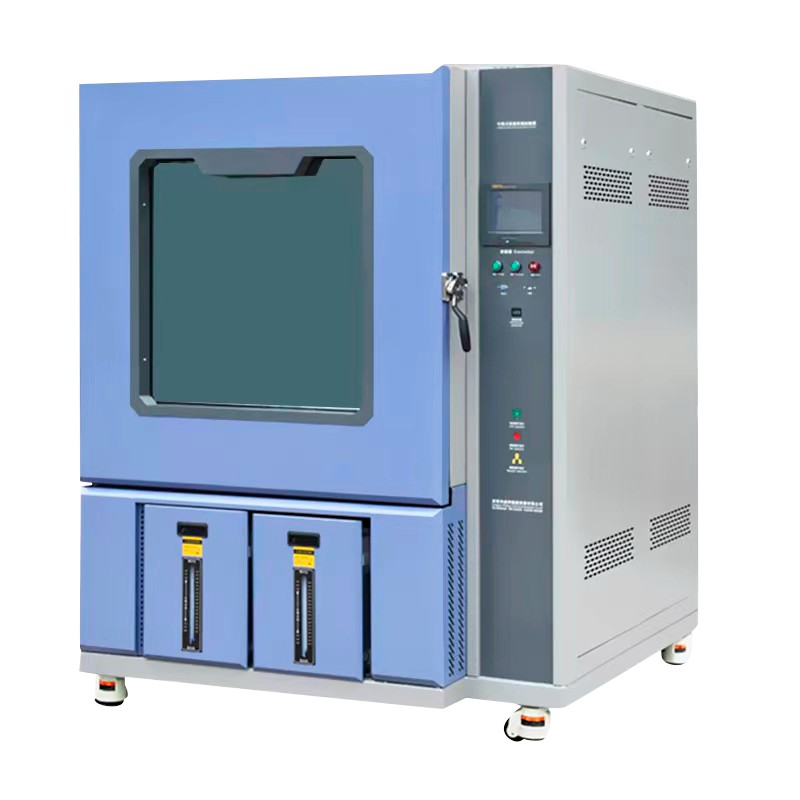

Environmental Fast Temperature Humidity Change Rate Test Chamber

Application:
It is applicatable for the testing of eletronic and eletrical complete machine
And parts under the condition of rapid or gradient changes in temperature, especially apply to Environment Stress Screening Test.

Packaging & Delivery
Packaging Detail: Strong wood case for rapid temperature change test chamber
Delivery Detail: 10 working days after getting the payment

Main Technical Parameters:
Range of Fast Temperature Change: -70± 150 ° C
Temperature Rising/Falling Velocity/Optional Velocity: -70± 150 ° C (Average -55+80 ° C )
Temperature fluctuation: 70º C~150º C
Temperature uniformity: ≤ 2º C
Temperature deviation: ± 2º C
Humidity Deviation: < /=± 3.0%RH(75%RH). < /=5.0%RH< 75%RH)
Type of Temperature and Humidity: BTHC
Environment Temperature: +5± 35 ° C
Power: AC380± 10%V 50Hz± 0.5Hz

Reference standards:
Temperature. Testing devices: IEC68-2-1
Low temperature testing: IEC68-2-2
High temperature testing: IEC68-2-3
Constant temperature and humidity testing: IEC68-2-30
